GXS165
Hydraulic Hammer
Blows Per Minute
300-350
-
BPM
Impact Energy
10000
-
Ft-Lbs.
Operating Weight
7600/3450
-
Lbs/KG.
Explore GXS165
About the Gorilla®GXS165

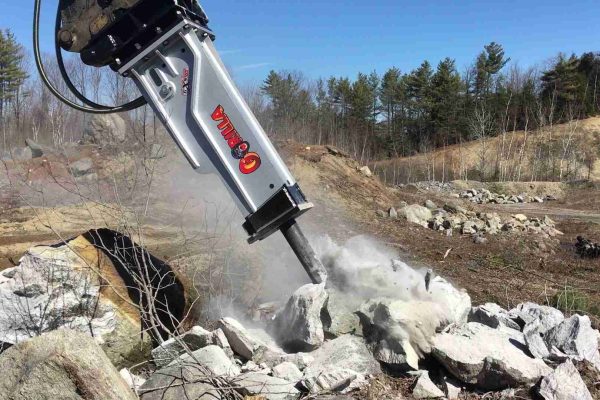

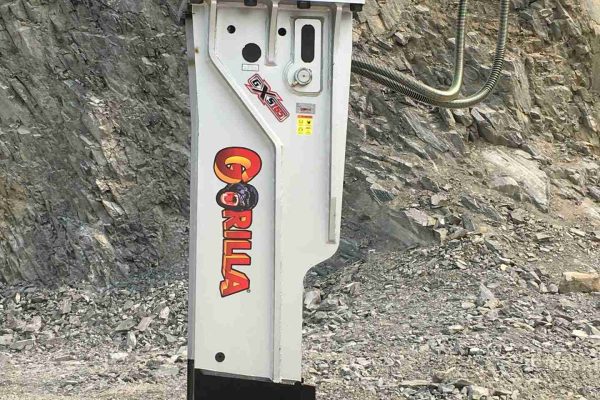

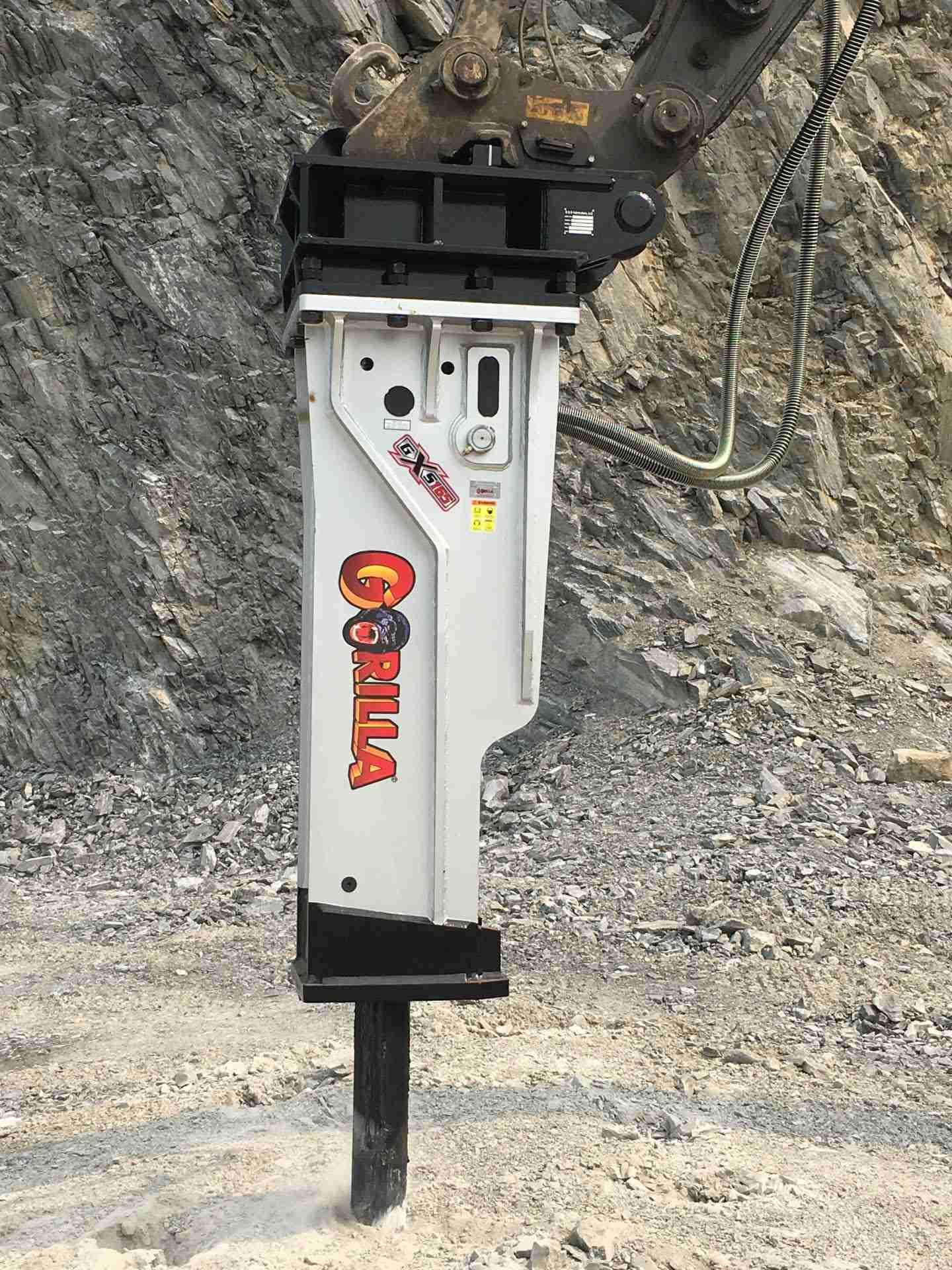

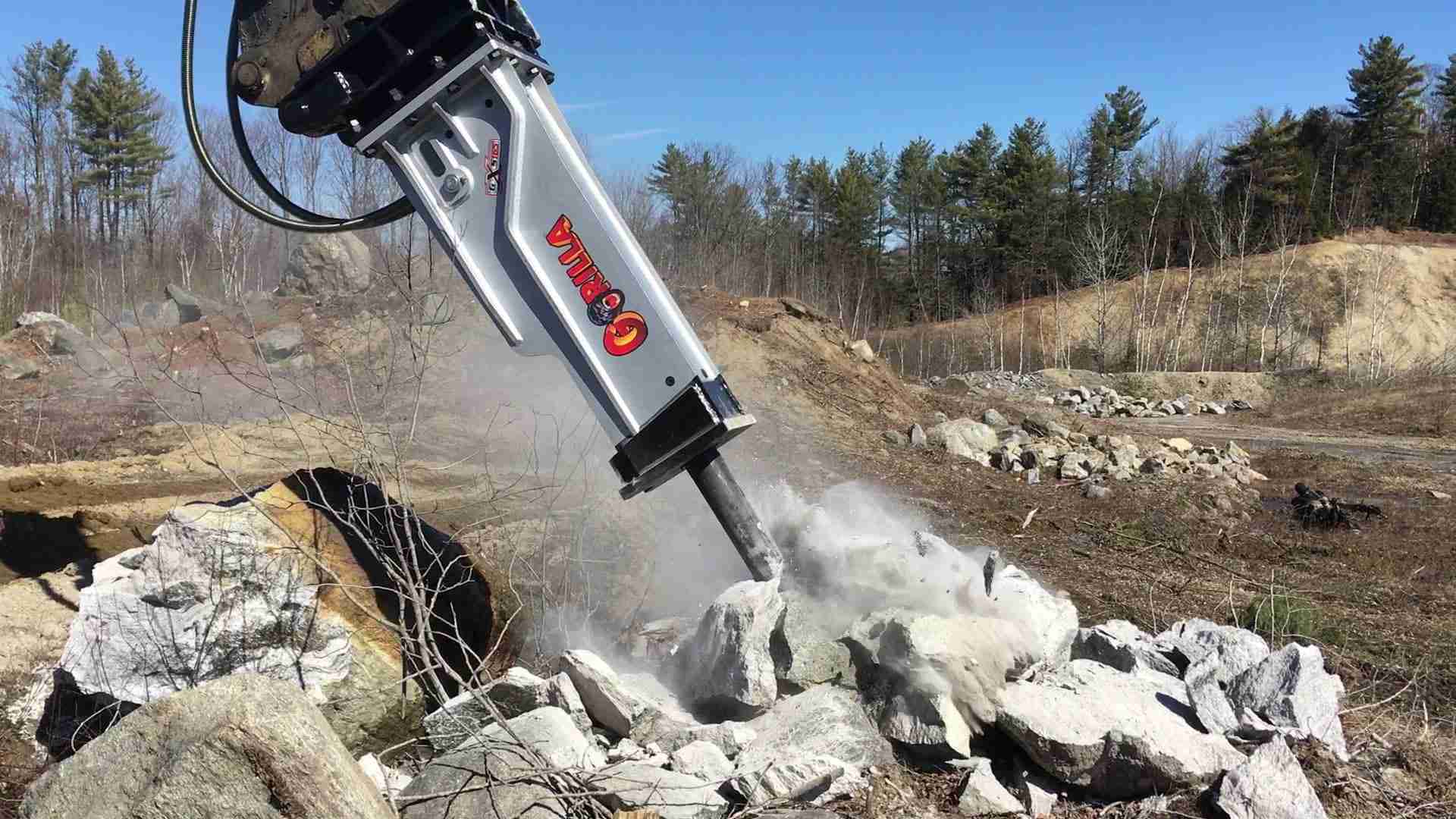

With an efficient power-to-weight ratio that allows its use on carriers as small as 30 tons, the GXS165 is a high-impact, heavy-class hydraulic hammer used for large scale demolition projects, primary rockbreaking, and sitework as well as reducing oversized shot rock or blasted rock. Delivering an impressive 10,000 ft-lbs. of impact energy through a heavy-duty 6.5″ (165 mm) tool diameter, the GXS165 hydraulic breaker powers through embedded rock and granite and is frequently used in quarry production, mining operations and major structural excavation and infrastructure deletion. When mounted to a 30-47-ton crawler excavator, the GXS165 hydraulic breaker brings massive striking power, stable hydraulic performance, and rugged reliability to handle continuous, demanding workloads while still offering transportability when mounted to smaller carriers in its excavator class.
GXS165 Full Specifications
-
Impact Energy 10000 ft.lbs.
-
Operating Weight 7600/3450 lbs/kg.
-
Blows per Minute 300-350 bpm
-
Tool Diameter 6.5/165 in./mm.
-
Carrier Weight (Tons) 32-47 tons
-
Carrier Weight (Lbs) 70547-103617 lbs.
-
Oil Flow Rate 52-66/200-250 GPM/LPM
-
Operating Oil Pressure 2300-2600/160-181 PSI/BAR
-
Auxiliary Circuit Relief 3100/220 PSI/BAR
Have questions, need help, or want to request additional information? Contact Gorilla Hammers now!
Customers Also Viewed
Machine Fitment List
CASE 1221E, CX300, CX300E, CX350, CX350D, CX365, CX365E SR, CX380, CX380E
CAT 229, 229D, 229SA-180, 231, 231D, 231DLC, 235, 235B, 235C, 235D, 235DLC, 330, 330B, 330BL, 330BLME, 330BME, 330C, 330CL, 330CLME, 330CME, 330D UHD, 330DL, 330DLME, 330FL, 330GC, 330L, 330LME, 330ME, 335, 335FL, 335FLCR, 336, 336DL, 336EH, 336EH HYBRID, 336EL, 336F, 336FL, 336FLXE, 336FXE, 336GC, 340, 345, 345B, 345B SER II, 345B SER II ME, 345BL, 345BL SER II, 345BLME, 345C UHD, 345CL, 345DL, 973, 980, 980GC, 980H, 980K, 980XE, E300, E300B, EL300, EL300B
JOHN DEERE 300G, 345G, 350G, 380G
LINKBELT 300X4, 330 LX, 350 X2, 350 X3, 350 X4, 350 X4 LF, 350X4, 355 X4S, 370 X4S, 370 X4S LF, 3740, 3740B RB, 3740RB, 4040B RB, 4040RB, 460 LX, 460 X2, 4640R RB, 470 X3, 470 X4, 5040RB, 5800Q, 5800QEX, 5800QLL, LS-4300, LS-4300 II, LS-4300 LC, LS-4300 LC II, LS-4300 LL, LS-4300A, LS-4300C, LS-4300C II, LS-4300CTL II, LS-4300L LC, LS-4300S II, LS-4380C II, LS-4800, LS-5700C II, LS-5800, LS-5800 II
DOOSAN 350LC, 350LC-3, 350LC-5, DL550, DX300LC, DX300LC SLR, DX300LC-5, DX300LCA, DX300LL, DX340LC, DX340LCA, DX420LC, DX420LC-5, DX420LCA, DX420LCRCW, S420LC-V, S470LC-V
LIUGONG 933E, 933E DM, 933F, 936 LC, 936D, 936E, 936F, 939E, 939F, 945E, 950E, CLG930E, CLG936E
DAEWOO DH320, DH450, DX300LC, DX300LL, DX300SLR, DX340LC, DX420LC
NEW HOLLAND E335, E335 LC, E385, E385 LC, E385B, E385B LC, E385C, E385C LC, E405C, EC350, EC350 LC, EC350B, EC350B LC, EC450, EC450 LC
VOLVO EC300, EC330, EC330 LC, EC330B, EC330B LC, EC330CL, EC340, EC340 LC, EC340B LC, EC340B LC PRIME, EC340D, EC340DL, EC340N, EC340N LC, EC350, EC350E, EC350EL, EC360, EC360 LC, EC360 LC-3, EC360A, EC360B, EC360B LC, EC360B LC PRIME, EC360B LR, EC360BN LC, EC360C, EC360C LC, EC360C LD, EC360C NL, EC360CL, EC360DL, EC360N LC, EC360N NLC PRIME, EC370, EC370FL5, EC380, EC380CL, EC380D, EC380D LR, EC380DL, EC380DNL, EC380E LR, EC380EL, EC380ENL, EC390, EC390 LC, EC390N, EC400, EC400FL5, EC420, EC420 LC, EC450, EC450R, EC460, EC460-3, EC460A LC, EC460B LC, EC460B LC PRIME, EC460B LR, EC460C, EC460C LC, EC460C LD, EC460CL, EC480, ECR350E, ECR355, ECR355E, ECR355EL, ECR355ENL, MX465LS
HITACHI EX330, EX330-5, EX330LC-3, EX330LC-5, EX370, EX370-5, EX400, EX400-3, EX400-5, EX400LC, EX400LC-3, EX450, EX450-5, EX450LC-5, ZX300, ZX300LC-6, ZX330, ZX345, ZX345USLC-6, ZX350, ZX350LC-3, ZX370, ZX380, ZX380LC-5, ZX380LC-6, ZX450, ZX450LC-3, ZX470, ZX470LC-5, ZX470LC-5 MASS EXC, ZX470LC-6
GRADALL XL7320, XL7320 II
KOMATSU HB365, PC330 LC, PC330-3, PC340, PC340 HRD-7E0, PC340 LC, PC340 LC-6, PC340 LC-6K, PC340 LC-6KJ, PC340 LC-7, PC340 LC-7E-, PC340 LC-7K, PC340 LC-8, PC340 LCD-7, PC340-6, PC340-6K, PC340-7, PC340N LC, PC340N LC-6, PC340N LC-6K, PC340N LC-6KJ, PC340N LC-7, PC340N LC-7E0, PC340N LC-7K, PC350, PC350 HD-8, PC350 LC, PC350 LC-10, PC350 LC-11, PC350 LC-6, PC350 LC-6E, PC350 LC-6Z, PC350 LC-7, PC350 LC-7E, PC350 LC-7E0, PC350 LC-8, PC350 LC-8K, PC350 LC-8M0, PC350-10, PC350-6, PC350-6E, PC350-6Z, PC350-7, PC350-7E0, PC350-8, PC350-8M0, PC350N LC-8, PC350N LC-8K, PC350NHRD-8, PC360, PC360 LC, PC360 LC-10, PC360 LC-11, PC360 LC-11E0, PC360 LC-3, PC360 LC-5, PC360 LC-5K, PC360 LC-6K, PC360 LC-8M2, PC360 LCI-11, PC360 LCI-11E0, PC360-11M0, PC360-3, PC360-5, PC360-7, PC360-8M0, PC360N LC-10, PC360N LC-11, PC360N LC-11E0, PC380, PC380 LC-6, PC380 LC-6K, PC380 LC-6KJ, PC380 LC-7, PC380 LCD, PC380U, PC390, PC390 LC-10, PC390 LC-11, PC390 LC-8M0, PC390 LCI-11, PC390HRD-11, PC395 LC-10, PC400, PC400 EX, PC400 HD, PC400 HD LC, PC400 HD-3, PC400 HD-3 LC, PC400 HD-5, PC400 HD-5LC, PC400 HD-6, PC400 HD-6 LC, PC400 HD-6 LK, PC400 HD-6 LM, PC400 LC, PC400 LC-1, PC400 LC-2, PC400 LC-3, PC400 LC-4, PC400 LC-4L, PC400 LC-5, PC400 LC-5A, PC400 LC-5C, PC400 LC-5E, PC400 LC-5K, PC400 LC-5L, PC400 LC-5LC, PC400 LC-5N, PC400 LC-6, PC400 LC-6BL, PC400 LC-6C, PC400 LC-6E, PC400 LC-6H, PC400 LC-6K, PC400 LC-6L, PC400 LC-6LC, PC400 LC-6LE, PC400 LC-6LK, PC400 LC-6LM, PC400 LC-6M, PC400 LC-6Z, PC400 LC-7, PC400 LC-7E, PC400 LC-7E0, PC400 LC-7L, PC400 LC-8, PC400 LC-8LK, PC400 LC-8R, PC400 LCSE-7, PC400-1, PC400-3, PC400-5, PC400-5L, PC400-6, PC400-6E, PC400-6LK, PC400-6Z, PC400-7, PC400-7B, PC400-7L, PC400-8, PC400-8R, PC400LC-8E0, PC400M, PC400S LC, PC400ST6, PC410, PC410 LC-5, PC410-5, PC430, PC450, PC450 HD, PC450 HD LC-7, PC450 HD-6, PC450 HD-7, PC450 LC, PC450 LC-11, PC450 LC-5, PC450 LC-6, PC450 LC-6E, PC450 LC-6K, PC450 LC-6KJ, PC450 LC-6Z, PC450 LC-7, PC450 LC-7E, PC450 LC-7K, PC450 LC-8, PC450 LC-8K, PC450 LC-8R, PC450 LC-8SE, PC450 LCD, PC450 LCD-6, PC450 LCD-7, PC450 LCD-8, PC450 LCHD-7K, PC450 LCHD-8, PC450-10, PC450-6, PC450-6E, PC450-6K, PC450-6KJ, PC450-6Z, PC450-7, PC450-7E, PC450-7E0, PC450-7K, PC450-8, PC450-8N1, PC460, PC460 LC-8
HYUNDAI HX300, HX300A L, HX300L, HX330, HX350, HX350A L, HX380, HX380A L, HX380L
JCB JS300, JS330, JS370
KOBELCO K914, K914A, K914C, K916, K916 II, K916 LC, K916 LC II, K916 LC III, K916A, K916A LC, K916C, SK300, SK320, SK320 III, SK320 LC II, SK320 LC III, SK320 LC VI, SK320 V, SK330, SK330 LC, SK330 LC III, SK330 LC IV, SK330 LC V, SK330 LC-6, SK330 LC-6E, SK330-6, SK330-6E, SK330-8, SK330-9, SK330H, SK330H-6, SK330N LC-6, SK350, SK350 HD-6, SK350 IV, SK350 LC, SK350 LC-10, SK350 LC-10E, SK350 LC-11, SK350 LC-11E, SK350 LC-6E, SK350 LC-7, SK350 LC-8, SK350 LC-9, SK350 LC-9E, SK350 LCD, SK350 NLC, SK350-8, SK350-9, SK350D, SK350D LC-10, SK350D-9, SK380 HD, SK380D-8, SK380HDLC-8, SK380SR LC, SK380SR LC-7, SK380XD LC-10, SK385 LC, SK390, SK390 LC, SK390 LC-10, SK390 LC-11, SK400, SK400 GD, SK400 HD, SK400 LC, SK400 LC GD, SK400 LC HD, SK400 LC II, SK400 LC III, SK400 LC IV, SK400 LC V, SK450, SK450 HD, SK450 LC III, SK450 LC IV, SK450-6, SK460, SK460 LC III, SK460 LC IV, SK460-8
LIEBHERR R934, R934 LITRONIC, R934B LITRONIC, R934BEW, R934BHD, R934BHDSL, R934C, R934C HDSL, R934EW, R934HDS, R934HDSL, R936, R936 LC, R936 LC LITRONIC, R936 NLC, R938, R942, R942 LC, R942 LITRONIC, R942D, R942EW, R942H, R942HD, R942HD LITRONIC, R942HDS, R942HDSL, R942HDV, R944, R944 LC, R944 LITRONIC, R944B, R944B LITRONIC, R944BHD, R944BHDS, R944BHDSL, R944C, R944C HDS, R944C LITRONIC, R944CHD, R944CHDSL, R944EW, R944HD LITRONIC, R944HDS, R944HDSL, R945, R945 LITRONIC, R945 S-HD, R945B, R946 LC, R946 LC LITRONIC, R946 NLC, R946S HD, R950 LITRONIC, R952, R952 LITRONIC, R952 LR, R952D, R952HD, R952HD LITRONIC, R952HDW
MITSUBISHI MS450-8
RHINO REX360, REX450
SAMSUNG SE350LC, SE350LC-2, SE450LC-2
SANY SY335C, SY335C LC, SY335C-9, SY335H, SY350, SY350C-9HD SPARC, SY360C, SY365, SY365C LC, SY365H, SY365H-9, SY365HC-9, SY375H-S, SY380HD, SY385C, SY390C-10HD, SY390H, SY405C, SY415H, SY420C, SY465C, SY475H
TAKEUCHI TB370
TEREX TXC340LC-1, TXC340LC-2, TXC420LC-1, TXC420LC-2, TXC470LC-1
XCMG XE360U
Machine not listed, or have additional questions? We’re ready to help. Contact Gorilla Hammers any time!
